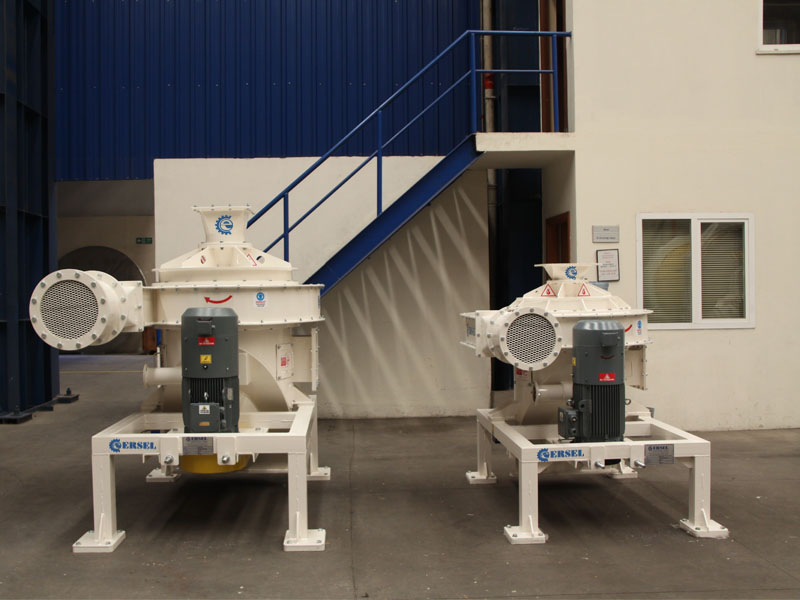

Ersel Classifiers; with its design our classifiers provider solutions with low energy consumption to our customers for their processes.
    * Accurate Top-Size Limitations
    * Adjustable Speed
    * High Product Capacity
    * No Product Leakage
    * Low Wear Rates
    * Easy Maintenance

ES DYNAMIC TYPE CLASSIFIERS
Type Feeding Capacity Motor Power Product Size and Capacity (t/h)
ES t/h kW d97:45µ d97:60µ d97:90µ d97:150µ
ES 2000 5-20 11 1.5-2.5 2.5-3.5 4-5 5-7
ES 2500 7-25 15+22 2-3 3-5 5-7 6-8
ES 3000 8-35 18,5+30 - 5-8 7-10 9-14
ES 3500 15-70 22+37 - 9-15 13-20 17-25
EDS TYPE CLASSIFIERS
Type Feeding Capacity Fan Diameter Motor Power Air Flow Rate Product Size and Capacity (t/h)
EDS t/h mm kW m3/h d97:20µ d97:45µ d97:63µ d97:90µ
EDS 500 1.5-8 ᴓ500 15 7.000 1.5 2.7 3.4 4.4
EDS 650 2.5-15 ᴓ650 22 12.000 2.5 4.3 5.5 7
EDS 800 5-25 ᴓ800 30 20.000 4 7 8.8 11
EDS 1000 8-40 ᴓ1.000 55 36.000 6 10 14 18
EDS 1300 10-60 ᴓ1.300 75 50.000 10 16 22 28
EDS 1600 20-80 ᴓ1.600 110 65.000 14 24 30 39
EYS TYPE CLASSIFIERS
Type Feeding Capacity Fan Diameter Motor Power Air Flow Rate Product Size and Capacity (t/h)
EYS t/h mm kW m3/h d97:5µ d97:10µ d97:20µ d97:30µ d97:45µ
EYS 410 0.8-5 ᴓ400 11 4.500 0.225 0.6 1.1 - -
EYS 500 1.3-8 ᴓ500 22 9.000 0.6 1.1 1.7 2 2.5
EYS 650 2.5-15 ᴓ650 30 12.000 0.9 1.8 2.8 3.4 4
EYS 800 4-25 ᴓ800 37 16.000 1.2 2.5 3.5 4.5 5.6
EYS 1000 5-40 ᴓ1000 45 25.000 - 3.5 7 8.5 10
EFS TYPE CLASSIFIERS
Type Feeding Capacity Fan Diameter Motor Power Air Flow Rate Product Size and Capacity (t/h)
EFS t/h mm kW m3/h d97:5µ d97:10µ d97:20µ
EFS 500 ~10 ᴓ500 160 25.000 0.7 1.5 3
EFS 650 ~16 ᴓ650 200 30.000 1 2.2 5.5
EFS 800 ~25 ᴓ800 250 36.000 1.5 3.7 8
EFS 1000 ~40 ᴓ1000 315 45.000 2.5 7 10
